Cantilever Beam Deflection Cantilever beams are special types of beams that are constrained by only one support, as seen in the above example. Deflection of Beam: Deflection is defined as the vertical displacement of a point on a loaded beam.

Deflection of simply supported beam with udl

It can occur in beams, trusses, frames and basically any other structure. The deflection distance of a member under a load is directly related to the slope of the deflected shape of the member under that load, and can be calculated by integrating the function that mathematically describes the slope of the member under that load. What is Deflection? The beams used for frame work are selected on the basis of deflection, amongst other factors. It may refer to an angle or a distance. Deflection of Beam: Deflection is defined as the vertical displacement of a point on a loaded beam. The deflection of beam elements is usually calculated on the basis of the Euler—Bernoulli beam equation while that of a plate or shell element is calculated using plate or shell theory. Deflection can be calculated by standard formula will only give the deflection of common beam configurations and load cases at discrete locations , or by methods such as virtual work , direct integration , Castigliano's method , Macaulay's method or the direct stiffness method , amongst others. This distance at each point along the member is the meaning or definition of deflection. Jump to navigation Jump to search In engineering , deflection is the degree to which a structural element is displaced under a load. The deflection is measured from the original neutral surface of the beam to the neutral surface of the deformed beam. The maximum deflection occurs where the slope is zero. These members would naturally deflect more as they are only supported at one end. E is the modulus of elasticity of the beam, I represent the moment of inertia about the neutral axis, and M represents the bending moment at a distance x from the end of the beam. There are generally 4 main variables that determine how much beam deflections.

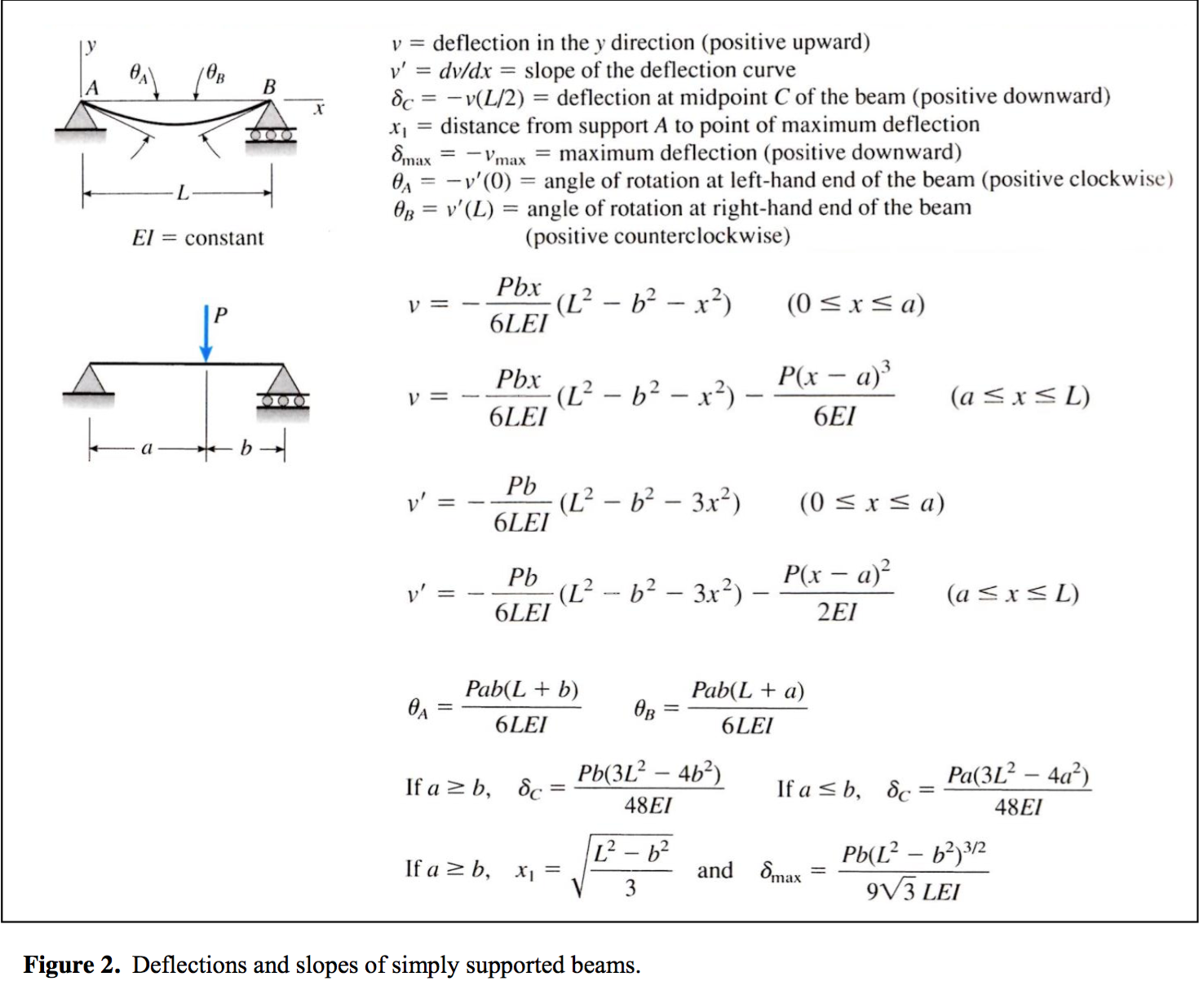

Simply Supported Beam Deflection Another example of deflection is the deflection of a simply supported beam. Then the value of x is substituted in the deflection equation to calculate the maximum deflection Methods of Determining Beam Deflections Numerous methods are available for the determination of beam deflections.

deflection of beams calculator

Slope of a Beam: Slope of a beam is the angle between deflected beam to the actual beam at the same point. These members would naturally deflect more as they are only supported at one end. This number defines the distance in which the beam has deflected from the original position. The deflection of beam elements is usually calculated on the basis of the Euler—Bernoulli beam equation while that of a plate or shell element is calculated using plate or shell theory.

Slope and deflection of simply supported beam

Deflection can be calculated by standard formula will only give the deflection of common beam configurations and load cases at discrete locations , or by methods such as virtual work , direct integration , Castigliano's method , Macaulay's method or the direct stiffness method , amongst others. The configuration assumed by the deformed neutral surface is known as the elastic curve of the beam. Jump to navigation Jump to search In engineering , deflection is the degree to which a structural element is displaced under a load. A double integration method is a powerful tool in solving deflection and slope of a beam at any point because we will be able to get the equation of the elastic curve. There are generally 4 main variables that determine how much beam deflections. The beams used for frame work are selected on the basis of deflection, amongst other factors. This distance at each point along the member is the meaning or definition of deflection. What is Deflection? The maximum deflection occurs where the slope is zero. These members would naturally deflect more as they are only supported at one end. Cantilever Beam Deflection Cantilever beams are special types of beams that are constrained by only one support, as seen in the above example. These beams are supported at both ends, so deflection of a beam is generally left and follows a much different shape to that of the cantilever. Deflection of Beam: Deflection is defined as the vertical displacement of a point on a loaded beam. What is Deflection Deflection Definition Deflection, in structural engineering terms, refers to the movement of a beam or node from its original position due to the forces and loads being applied to the member. The deflection is measured from the original neutral surface of the beam to the neutral surface of the deformed beam.
